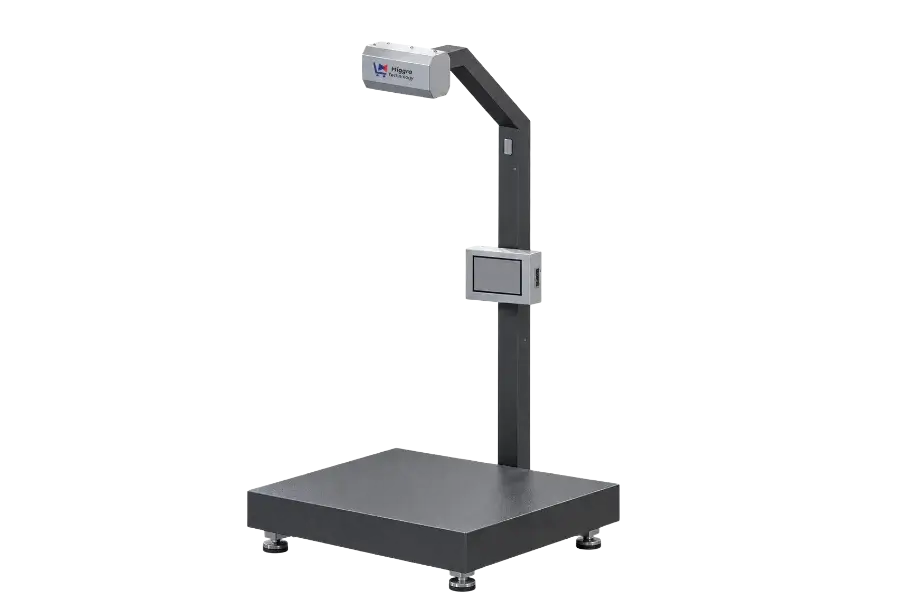

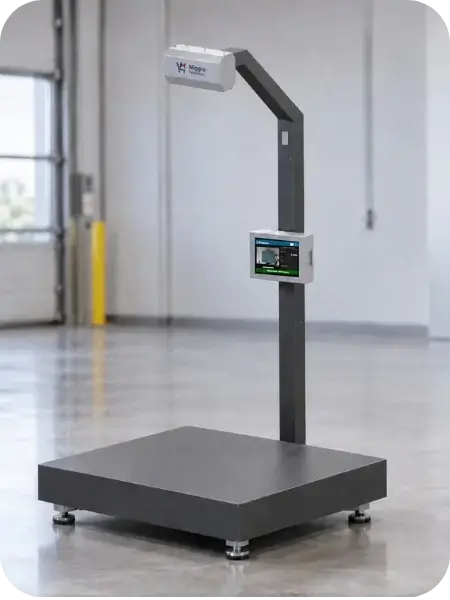

PROSCAN is a static measurement system that captures the length, width, height, weight, and barcode data of products and cases in a single processing step. It minimizes manual measurement and data entry during receiving, master data creation, quality control, and shipping processes.
Stereo camera and structured infrared light technologies determine three-dimensional product dimensions while the integrated weighing platform records weight data. The product identity acquired via barcode reader is paired with measurement and weighing data and transferred directly to the corresponding enterprise system.
- Automatic Measurement and Identification: Captures dimension, weight, and barcode data within the same transaction.
- High Measurement Precision: Supports a measurement tolerance of ±8 mm for items measuring 10 cm and above.
- Product Master Data Management: Ensures product dimensional and weight data remain standardized and up to date.
- Rack Allocation and Slotting: Dimensional data provides additional efficiency in storage space planning and product slotting.
- Carrier and Volumetric Weight Control: Enables verification of carrier volumetric weight (desi) calculations using volume and weight data.
- Barcode Compatibility: Supports various barcode types and formats by integrating seamlessly with fixed or handheld scanners.
- System Integration: Shares measurement data through native integration with MWS for instantaneous updates across all systems, while transmitting to WMS, ERP, or carrier software via APIs.
Determine the Optimal Product Configuration for Your Operation
Let’s evaluate the right combination of AMR, P2L, and measurement systems tailored to your load profiles, facility layout, personnel density, and integration requirements. Contact our expert team to review technical options and establish the scope of your project.
